Product Description
Diesel forklift trucks, gasoline forklift trucks, LPG forklift trucks and electric forklift trucks are one of the toughest workhorses in the materials handling world, being suited to a wide range of unit loads and designed to withstand of outdoor work. Powered by a fuel that is both easy to get hold of and straightforward to use, engine forklifts perform extremely well in harsh environments, including those that are wet or dirty. Diesel forklift, gasoline forklift, LPG forklift and electric forklift typical applications include: Loading and unloading goods vehicles, Container stuffing and moving goods into or out of external storage areas, Transferring items from one site location to another – for example between two different production areas. FORLOAD forklift trucks come in a comprehensive range of sizes and lift capacities. Having exceptional endurance and power, they effortlessly handle even the most difficult and heavy loads and can carry everything from a small pallet of bulk materials to individual components weighing several tones. Additionally, our forklift range is further boosted by a wide array of options that also enable you to fine tune each forklift truck to match your exact work requirements.Specification

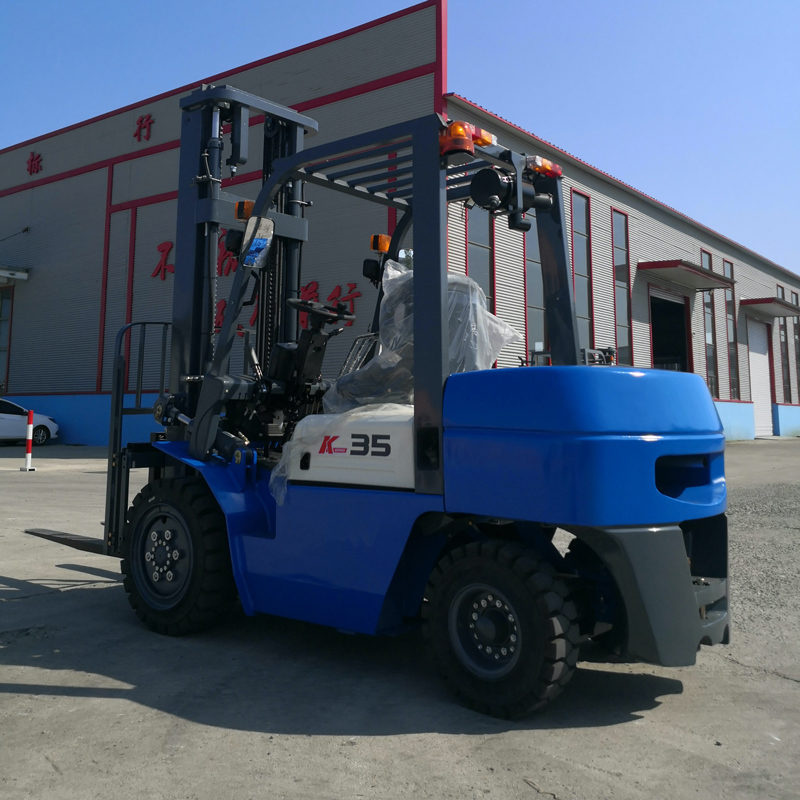

| Model | CPC35 (K35) |
| Power type | Diesel |
| Rated loading capacity | 3500kgs |
| Loading center | 500mm |
| Lifting height | 3000mm |
| Fork size | 1070x125x45mm |
| Mast tilt angle | 60/120 |
| Min. turning radius | 2450mm |
| Min. ground clearance | 135mm |
| Overhead guard height | 2165mm |
| Max. speed | 20km/h |
| Max. lifting speed | 480mm/m |
| Max. traction | 20kn |
| Max. gradeability | 20% |
| Length with fork | 3820mm |
| Length without fork | 2750mm |
| Width | 1225mm |
| Mast extended height | 4265mm |
| Mast lowered height | 2060mm |
| Front tire | 28x9-15-12PR |
| Rear tire | 6.50-10-10PR |
| wheelbase | 1700mm |
| Service weight | 4600kgs |
| Engine | XINCHAI 490BPG, 4 cylinders |
| Engine power | 40kw/2650rpm |
| Rated torque | 165Nm |
| Fuel tank | 70L |
| Working pressure | 17.5Mpa |
| Transmission | Manual |
